GPS Chart-Dual Frequency 600W Sonar System - 8 Color LCD with Internal & External GPS Antenna & C-MAP 4D Card

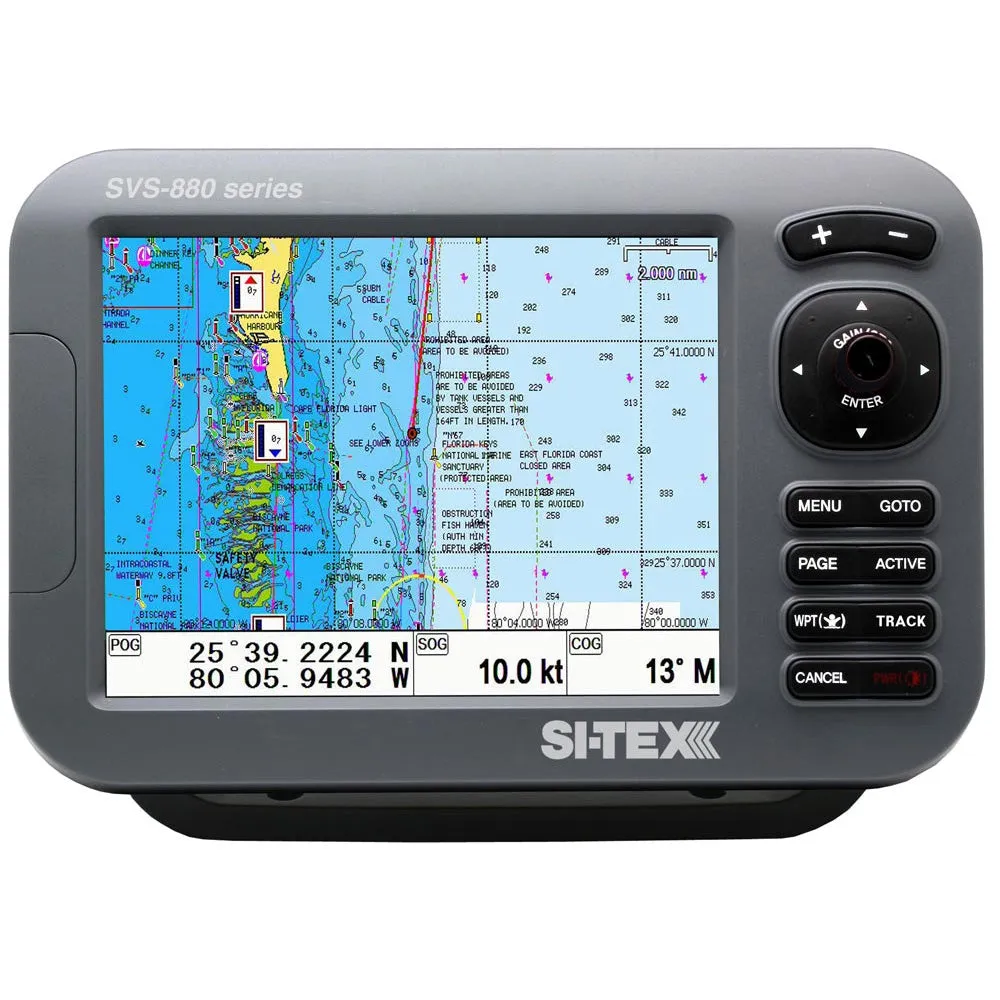

The SI-TEX SVS-880CFE is a powerful big-screen performer designed to fit every boat and budget. This compact chartplotter and chartplotter/sonar system delivers the goods for any vessel, from center console skiffs to sailboats to light commercial boats.

Differences between SVS-880CFE & SVS-880CFE

The SVS-880CFE has an updated Android processor and only uses C-MAP 4D cartridges.

Features:

• Internal and external GPS antenna
• 8" high-resolution color LCD and compact case
• 52-channel GPS
• "Dual fuel" charting the C-MAP and Navionics cartography Pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility
• 600-watt dual frequency 50/200 kHz Digital Echo Sounder
• Brilliant LED backlighting provides excellent sunlight readability
• Easy, intuitive operation and control
• Video input for underwater and on-deck cameras

General Specifications:

• Display Screen SVS-880CFE : 8-inch Color LCD with LED backlight
• Resolution SVS-880CFE : SVGA (800 x 600 pixels)
• Power Supply: DC 12V-36V(10%) SVS-880: 4W(without sonar)/ 6W(with sonar
• Operating Temperature: Display Unit -15 degrees C to 50 degrees C, Antenna Unit -25 degrees C to 70 degrees C
• Performance Standard: IMO Resolution MSC.112(73)

Chartplotter Specifications:

• Display Method: Mercator Projection
• Display Mode: True motion / N/S/E/W up / Course up / Head up
• Latitude Limits: Between 85 degrees N to 85 degrees S
• Map Scale: 0.05nm to 1500nm
• Map Datum: WGS-84 6
• Waypoints: 20,000 points *Total of 16 colors and 16 icons are selectable for each point with a name tag (6 alphanumeric characters)
• Track Points: 50,000 points (2 types)
• Route: Max capacity 100 Routes *20 WPTs per each Route. Each with name tags (8 alphanumeric characters)
• Draw Point: 1,000 points
• Area Name: 1,000 points
• Chart Data: Standard w/Navionics Gold C-MAP MAX optional
• Output Data: NMEA-0183
• Input Data: NMEA-0183
• Alarm Arrival, Anchor, XTE, Interval timer, Userline

GPS Receiver Specifications:

• GNSS Receiver Capabilities: GPS - L1 C/A code, GLONASS - L1OF/, QZSS - L1 C/A code, Galileo - E1B/E1C/L1
• Number of Channels: 52 channels
• Horizontal Positioning Accuracy: Autonomous 2.5m (CEP 50%)
• Sensitivity: Acquisition -148 dBm, Tracking -165 dBm, Reacquisition -162 dBm, Nav Update 1Hz, 5Hz)
• Support: DGPS, SBAS (EGNOS,WAAS, MASA, GAGAN)

Sonar Specifications:

• Display Mode: Normal (single/dual-frequency), Bottom-lock. Bottom-zoom, A-scope
• Frequency 50 and 200 KHz (single or dual)
• Output Power: 600W
• Range Speed: 600W - 2.5m - 600m
• Image Speed: Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop
• Rejection: Interference rejection: 3 levels, Noise rejection: 4 levels
• Function: Gain(auto/manual), Range(auto/manual), Shift(auto/manual), White/Black line Support speed sensor, Water temperature

Specifications:

• Cartography Brand: Navionics/C-Map
• Screen Size: 8"
• Touchscreen: No
